2004 SAN 210 Signature ballast switch wiring

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • 2004 SAN 210 Signature ballast switch wiring

    I made the mistake of disconnecting both the port and starboard ballast fill/drain rocker switches on my 2004 SAN 210 (Signature) without properly labeling where things were connected. Can anyone give some guidance on how to reconnect these switches? More photos would be great as well.

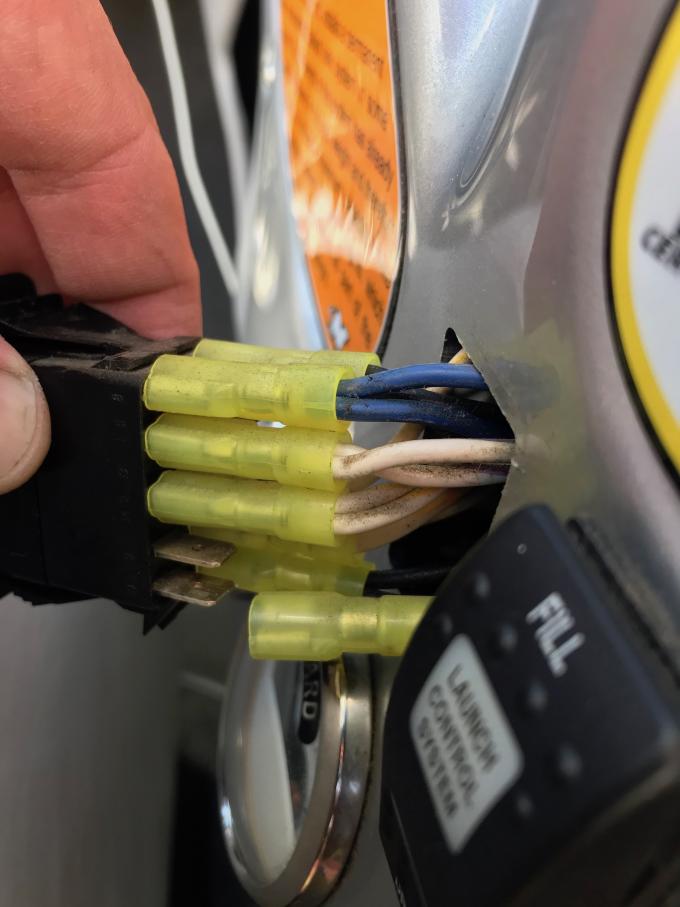

    I've seen the basic "main" wiring diagram but am still not clear. I think my switches each have 10 pins on the back and 8 of them are used. Here are the only two useful photos I took but it seems there are multiple sets of white/yellow and white/purple wires.
    Attached Files

  • #2
    I got it figured out. In case anyone runs into this in the future, I made a diagram:

    Click image for larger version  Name:	Screen Shot 2019-10-29 at 1.30.50 PM.png Views:	0 Size:	91.2 KB ID:	596763
