    Throttle Base Assembly Replacement G23 G25 GS 210/230 2015+

    https://nautiqueparts.com/throttle-base-assembly/
    Also fits SN 200 2019+

    Systems: Random no starts, neutral lock out not working.

    I found next to nothing out there when it comes to this replacement procedure.
    I would like to give special credit to aerojust for taking the time to post the procedure on his thread, it gave me a great kickstart:
    https://www.planetnautique.com/vb5/f...nd-replacement

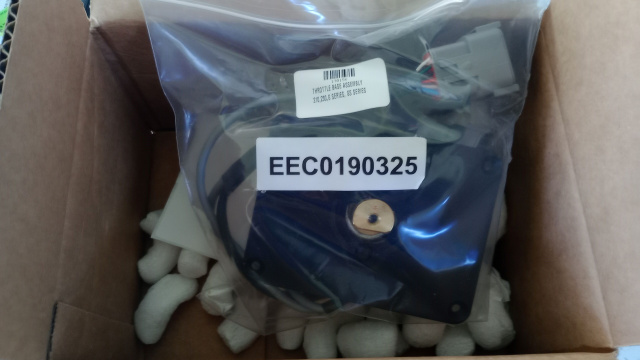

    Nautique Parts, ordered new base on Monday, showed up at my door Wednesday afternoon (regular shipping). Good job NP, and thanks for the "PND" 10% discount code.
    Click image for larger version

Name:	1.jpg
Views:	248
Size:	69.8 KB
ID:	684234
    Click image for larger version

Name:	2.jpg
Views:	197
Size:	135.5 KB
ID:	684235

    Things you may need.

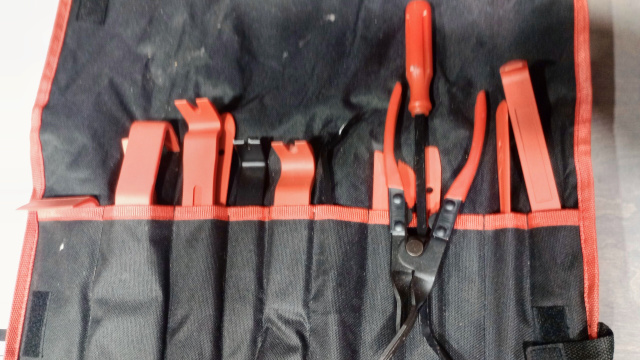

    Trim removal kit
    Click image for larger version

Name:	3.jpg
Views:	183
Size:	113.2 KB
ID:	684236

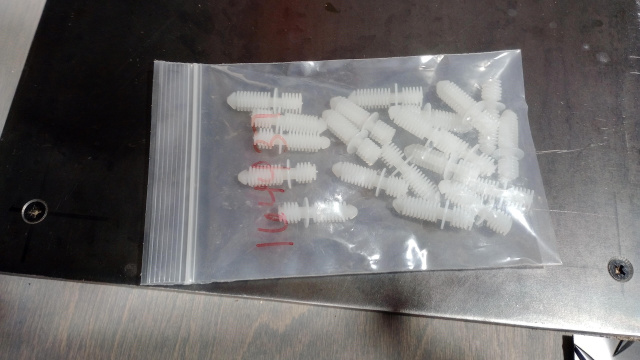

    Christmas Tree studs
    https://nautiqueparts.com/christmas-tree-studs/
    Click image for larger version

Name:	4.jpg
Views:	187
Size:	85.5 KB
ID:	684237

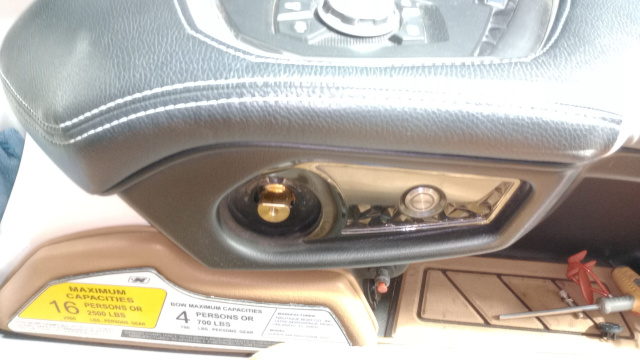

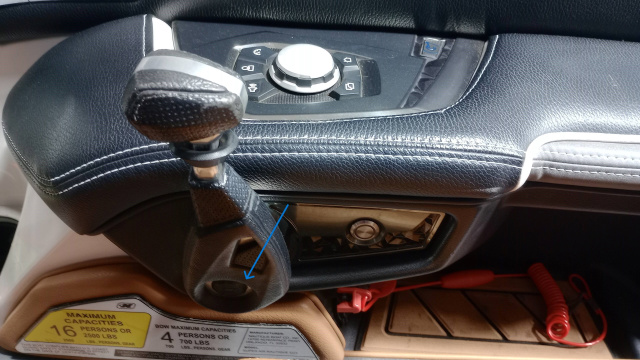

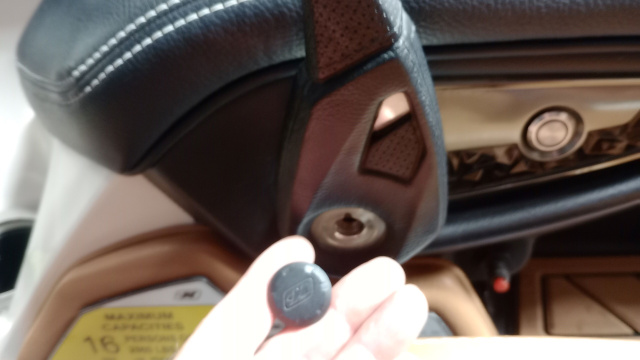

    Remove throttle center cap, it just pops out
    Click image for larger version

Name:	5.jpg
Views:	184
Size:	112.4 KB
ID:	684238
    Click image for larger version

Name:	6.jpg
Views:	191
Size:	68.8 KB
ID:	684239

    3/16" Allen
    Click image for larger version

Name:	7.jpg
Views:	180
Size:	99.6 KB
ID:	684240
    Click image for larger version

Name:	8.jpg
Views:	188
Size:	93.3 KB
ID:	684241
    Click image for larger version

Name:	16.jpg
Views:	179
Size:	92.1 KB
ID:	684249

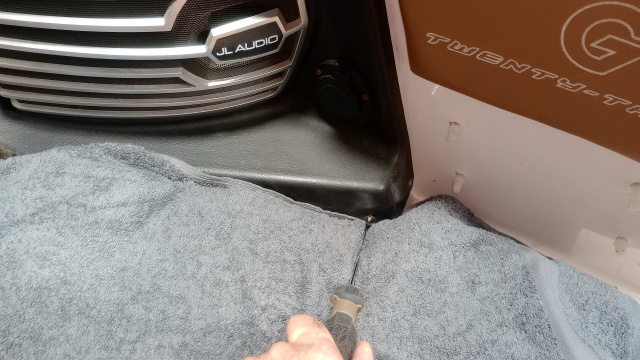

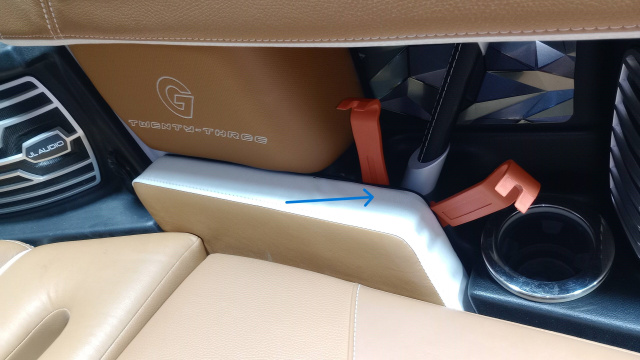

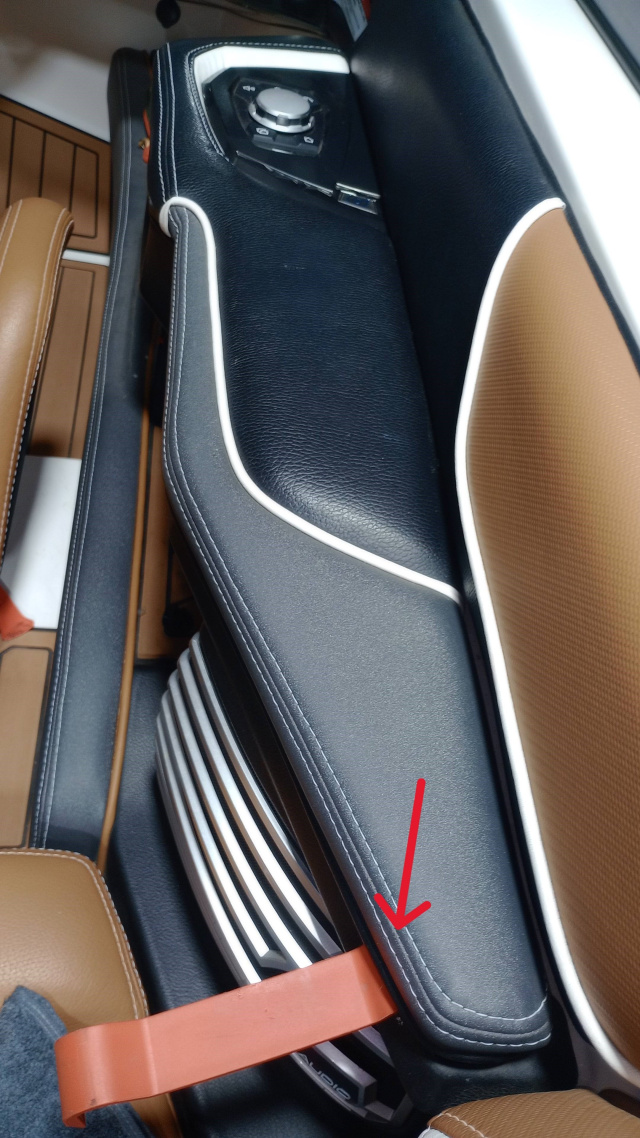

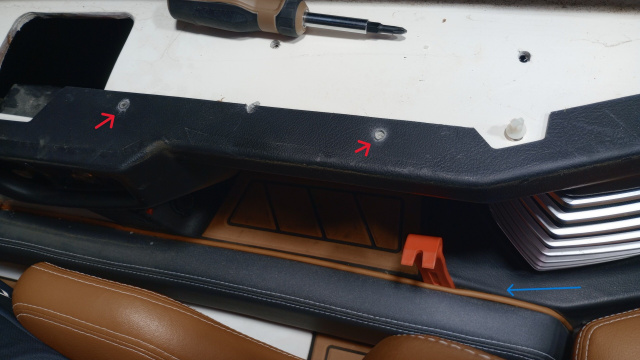

    Trim removal. Try to find a corner or area of easiest access. Once you've gotten the 1st tree to pop, just follow the path and try to get as close as possible to each tree with the tool(s). You have a few panels to pull...
    Click image for larger version

Name:	9.jpg
Views:	184
Size:	111.7 KB
ID:	684242

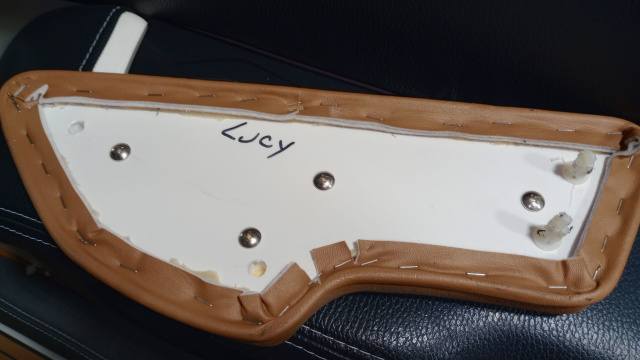

    Apparently, someone let Lucy have a sharpie at the factory, they should of known better.
    Click image for larger version

Name:	10.jpg
Views:	187
Size:	80.0 KB
ID:	684243
    Click image for larger version

Name:	11.jpg
Views:	192
Size:	299.6 KB
ID:	684244

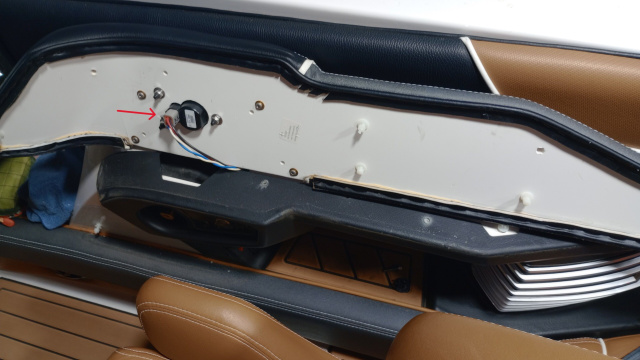

    Not much to the control pad, I was expecting more. Detach plug.
    Click image for larger version

Name:	12.jpg
Views:	186
Size:	87.4 KB
ID:	684245

    I would of loved to have been able to pull the seat cushion behind the drivers seat, better yet, I would love to know how?
    Click image for larger version

Name:	13.jpg
Views:	181
Size:	89.1 KB
ID:	684246

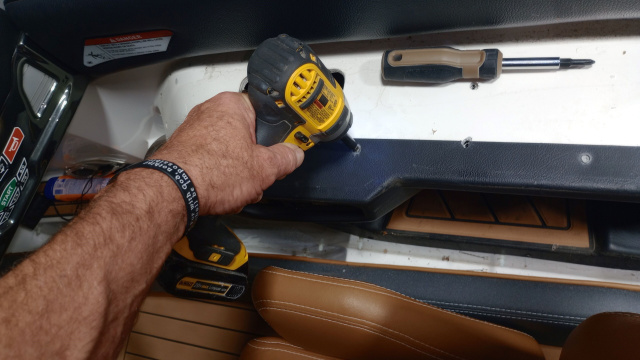

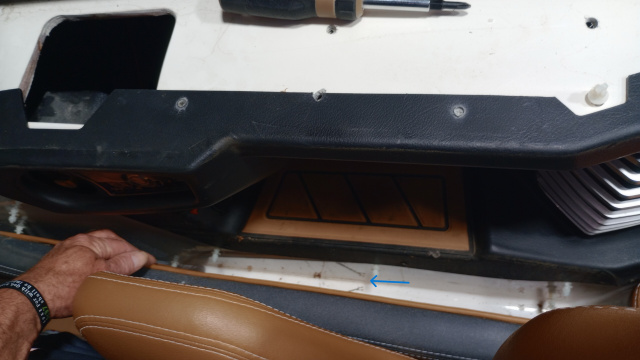

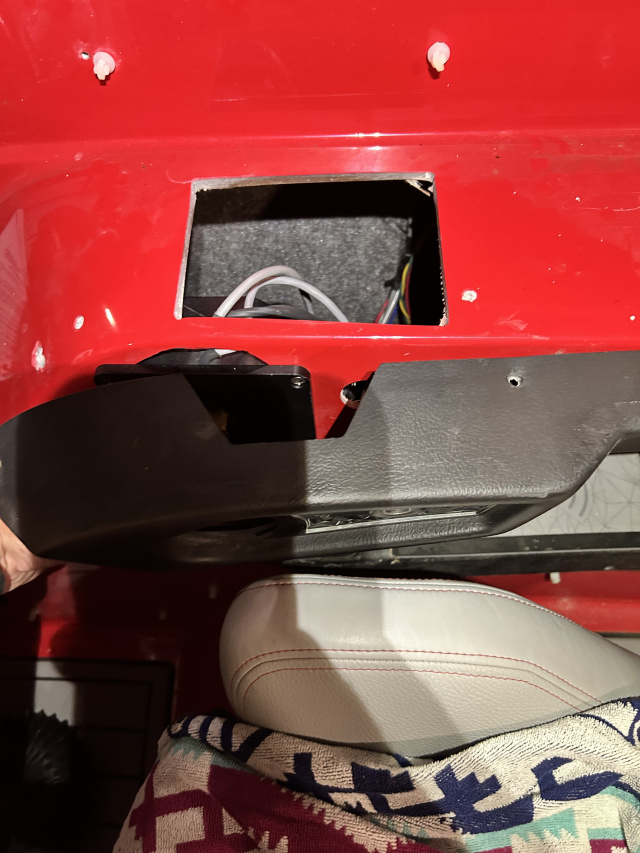

    A plethora of phillips screws surrounding the hard cover.
    Click image for larger version

Name:	14.jpg
Views:	184
Size:	85.4 KB
ID:	684247

    Man I've been wondering where those 2 bobby pins went, been looking for those for years.
    Click image for larger version

Name:	15.jpg
Views:	188
Size:	74.0 KB
ID:	684248
    Click image for larger version

Name:	16.jpg
Views:	182
Size:	92.1 KB
ID:	684250
    Click image for larger version

Name:	17.jpg
Views:	181
Size:	109.2 KB
ID:	684251

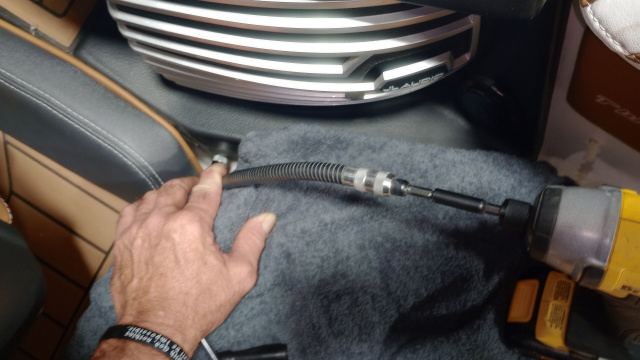

    A flexible extension, one of my top 10 tools, and it seems to get used on boats more than anywhere else.
    Click image for larger version

Name:	18.jpg
Views:	185
Size:	92.6 KB
ID:	684252

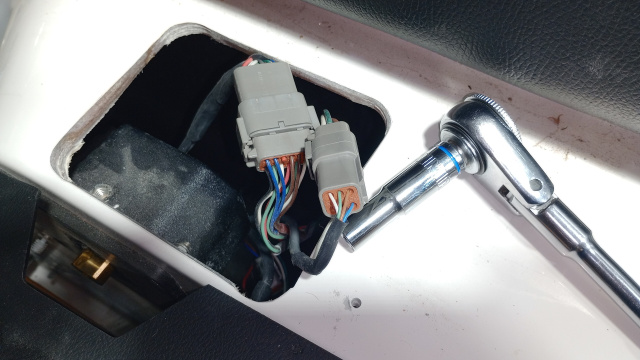

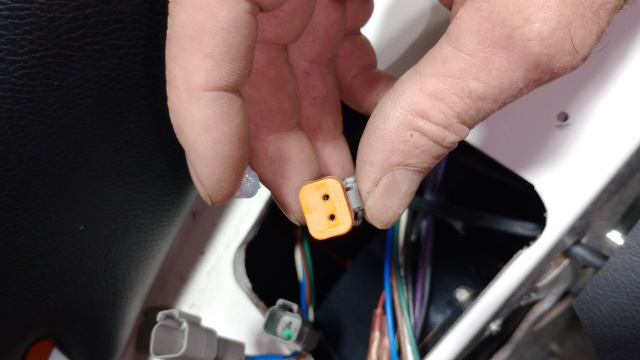

    Unplug base.
    Click image for larger version

Name:	18.jpg
Views:	183
Size:	92.6 KB
ID:	684253
    Click image for larger version

Name:	19.jpg
Views:	191
Size:	88.3 KB
ID:	684254

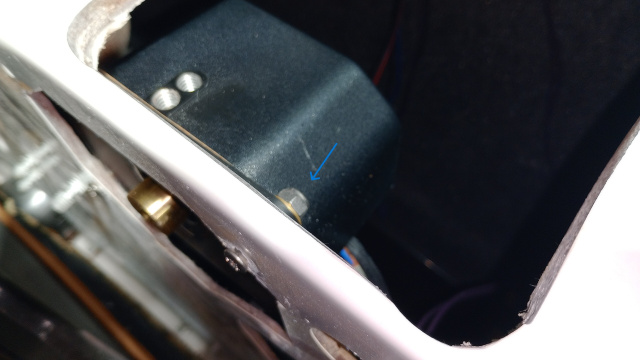

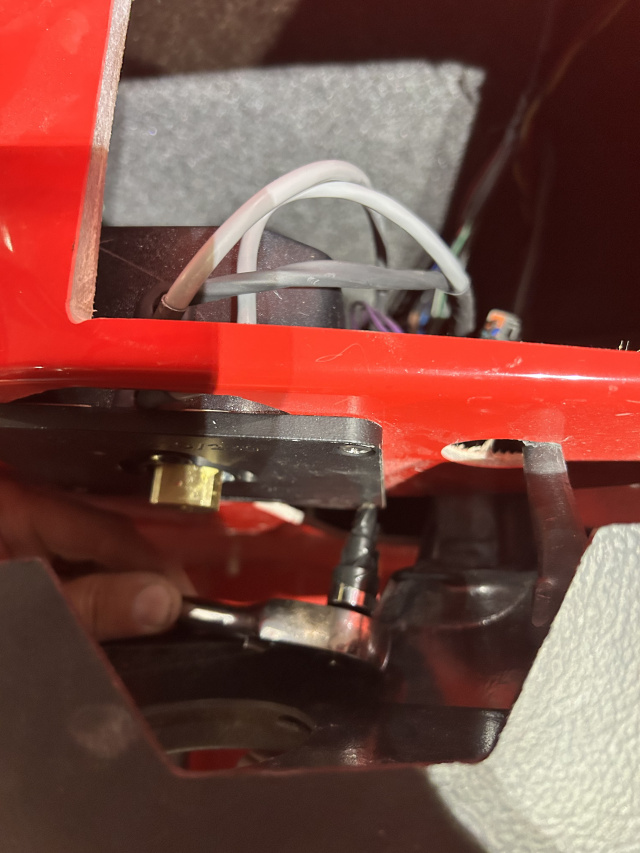

    The red arrow on the right indicates a screw only, the other 3 have nuts. Reach in for a feel to see that yours is the same.
    Click image for larger version

Name:	20.jpg
Views:	182
Size:	82.6 KB
ID:	684255

    I went with a 10mm, but I think it's actually a 3/8". Didn't want to crawl back out of the boat.
    Click image for larger version

Name:	22.jpg
Views:	191
Size:	67.9 KB
ID:	684256

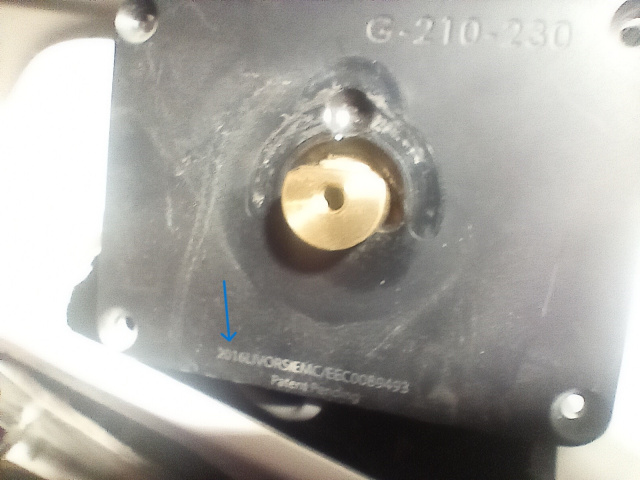

    Old base, dated 2016
    Click image for larger version

Name:	23.jpg
Views:	190
Size:	101.4 KB
ID:	684257

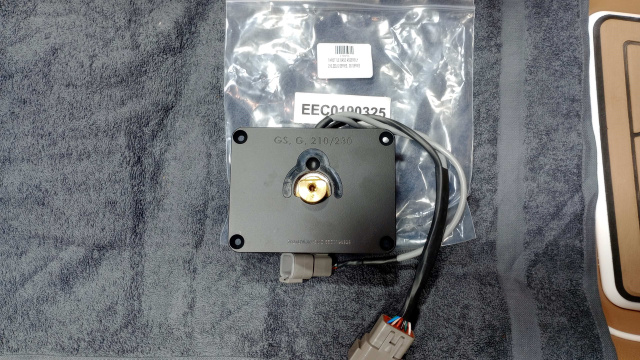

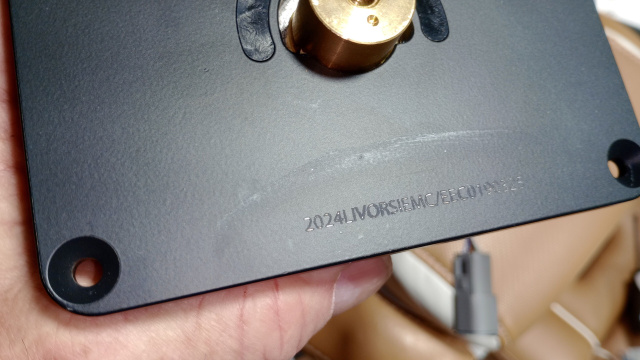

    New base, 2024
    Click image for larger version

Name:	24.jpg
Views:	191
Size:	89.1 KB
ID:	684258

    A like to throw a little dab of Dielectric Grease on the electrical connections
    Click image for larger version

Name:	25.jpg
Views:	189
Size:	76.0 KB
ID:	684259

    Assembly in reverse.
    Word to the wise, remember to plug the safety lanyard back in before testing. I'll never get those 30 minutes back of what did I miss, fetch.
    Neutral lock out works now, there is even a blue light on that thing, cool. All seems well on the test fire, we'll hit the water this evening for the final test.

    I hope this deems useful in the future. With this outline, you should be able to tackle this in an hour, 2 people would be extremely helpful.

    ~Scooter G
    Last edited by Scooter G; 4 weeks ago. Reason: Edit: Restored Pictures
